RF-UCPUCF

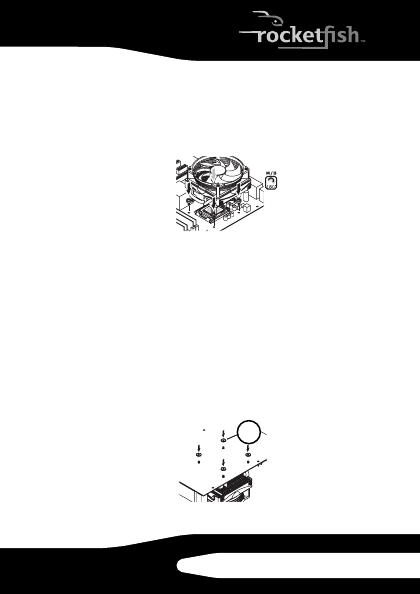

3 Turn the CPU cooler assembly over and

place it on the CPU, aligning the screws

on the retention brackets with the

installation holes in the system board.

4 Hold the CPU cooler in place and turn

the system board over.

Caution: Exercise extreme caution so that no

components are damaged when

handling the system board.

5 Attach the insulating cushions (G) onto

the mounting screws of the mounting

brackets that project through the

system board.

08-1280_RF-UCPUCF - ENG.fm Page 9 Wednesday, June 11, 2008 3:43 PM
